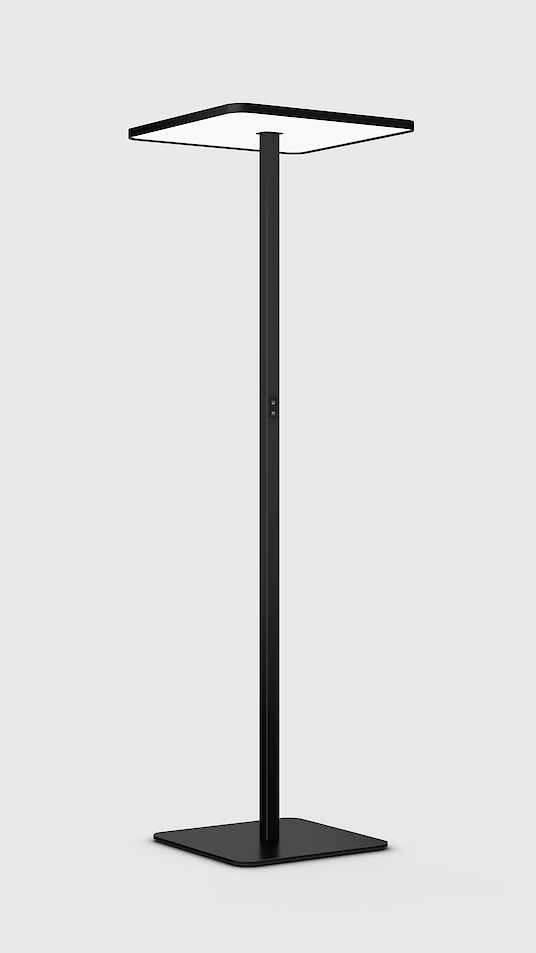

LED free-standing luminaire

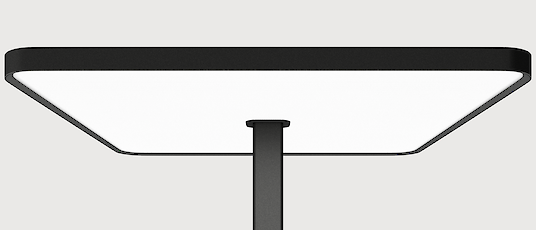

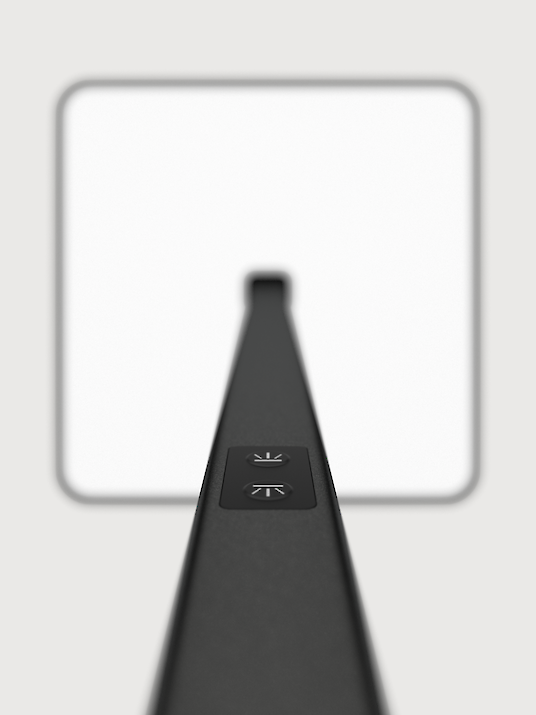

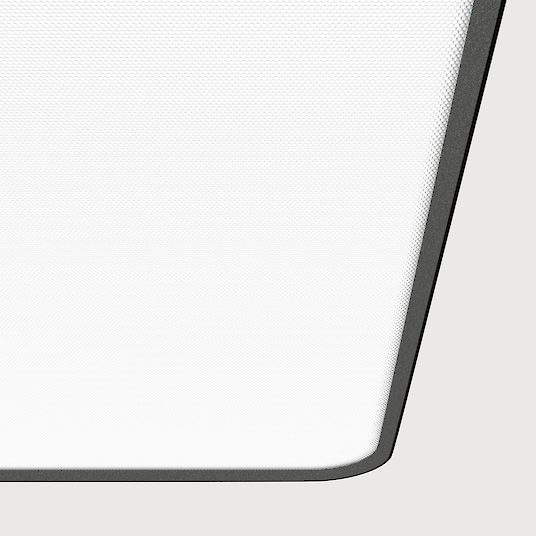

Direct-indirect light distribution. Luminaire body made of aluminium with slender overall height of 30mm. Outer housing and Décorative reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces with uniform and enhanced light transmission. Intuitive pole mounted control panel for dimming and switching the direct/indirect light separately. Colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Steel Base plate, colour matching luminaire body. 4m power cable with country-specific plug (EU, CH, UK).
Product adjustments
Snow White | Snow White
Snow White | Satin Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Base-Type | Reflector Colour Inside | Plug | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS4AWM-835M-Q600-CB-A | Caleo-S4 | L=600mm | Microprismatic screen | Snow White | 3500K | Dim-Multisensor | Square base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 16800lm | 115W | |
| AS4AWM-830M-Q600-CW-A | Caleo-S4 | L=600mm | Microprismatic screen | Snow White | 3000K | Dim-Multisensor | Square base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 15708lm | 115W | |
| AS4AWM-830M-Q600-CB-A | Caleo-S4 | L=600mm | Microprismatic screen | Snow White | 3000K | Dim-Multisensor | Square base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 15708lm | 115W | |
| AS4AWM-830M-Q600-CG-A | Caleo-S4 | L=600mm | Microprismatic screen | Snow White | 3000K | Dim-Multisensor | Square base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 15708lm | 115W | |
| AS4ASM-830M-Q600-CS-A | Caleo-S4 | L=600mm | Microprismatic screen | Radiant Silver | 3000K | Dim-Multisensor | Square base | Reflector: Radiant Silver | Schuko CEE 7/7 (E+F) | 15708lm | 115W | |
| AS4ABM-830M-Q600-CB-A | Caleo-S4 | L=600mm | Microprismatic screen | Jet Black | 3000K | Dim-Multisensor | Square base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 15708lm | 115W | |
| AS4ABM-830M-Q600-CG-A | Caleo-S4 | L=600mm | Microprismatic screen | Jet Black | 3000K | Dim-Multisensor | Square base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 15708lm | 115W | |
| AS4AWM-835M-Q600-CW-A | Caleo-S4 | L=600mm | Microprismatic screen | Snow White | 3500K | Dim-Multisensor | Square base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 16800lm | 115W | |
| AS4ABR-835M-Q600-CB-A | Caleo-S4 | L=600mm | Microprismatic screen | Jet Black | 3500K | Swarm Control | Square base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 16800lm | 115W | |
| AS4ABR-835M-Q600-CG-A | Caleo-S4 | L=600mm | Microprismatic screen | Jet Black | 3500K | Swarm Control | Square base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 16800lm | 115W |
