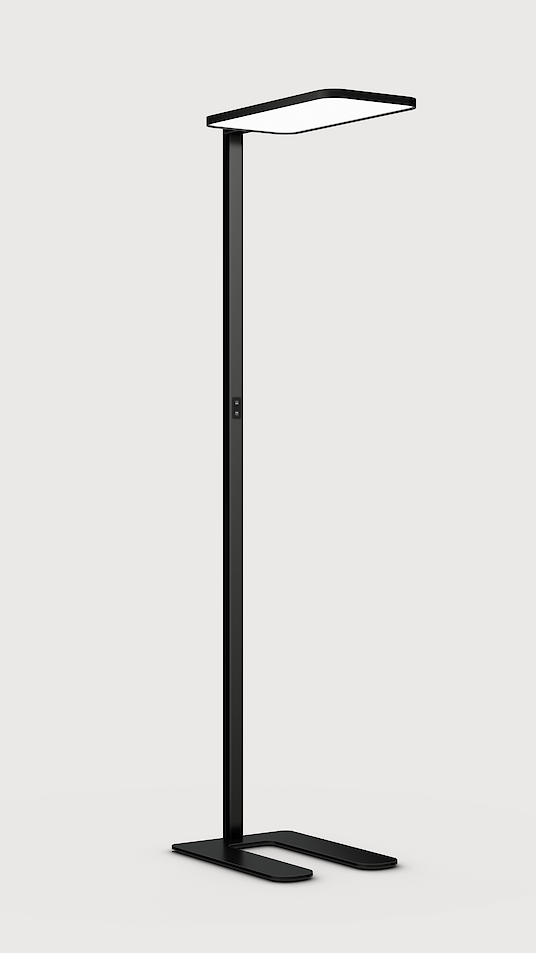

LED free-standing luminaire

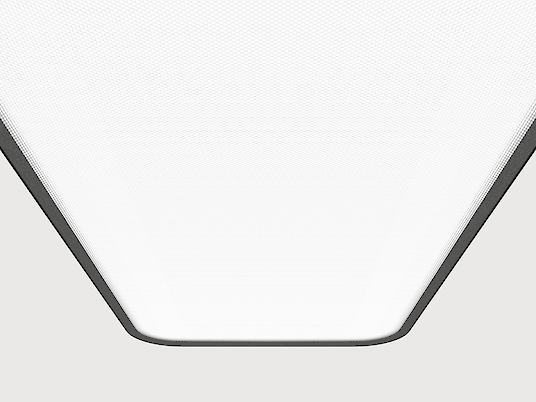

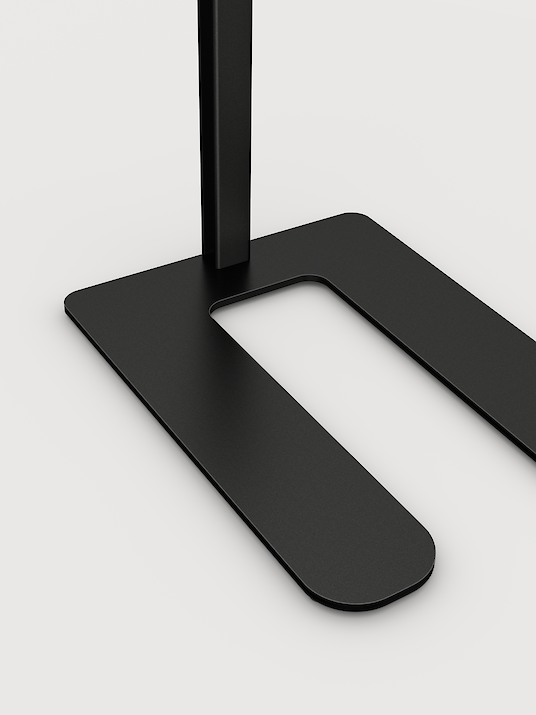

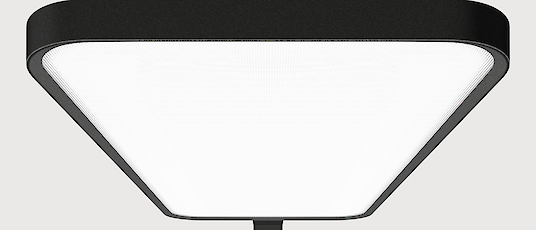

Direct-indirect light distribution. Luminaire body made of aluminium. Outer housing and Décorative reflector ring available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Recessed microprismatic screen with optimized glare reduction especially for workplaces with uniform and enhanced light transmission. Intuitive pole monuted control panel for dimming and switching the direct/indirect light separately. Colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Steel base plate, optionally with U- or Side Cut-Out for different table designs, colour matching luminaire body. 4m power cable with country-specific plug (EU, CH, UK).
Product adjustments
Separately Dimmable
Snow White | Snow White
Snow White | Satin Silver
Snow White | Jet Black
Snow White | Satin Gold
Snow White | Anodic Champagne
Snow White | Satin Copper
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Base-Type | Reflector Colour Inside | Plug | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS2ABM-835M-L600-UG-A | Caleo-S2 | L=600mm | Microprismatic screen | Jet Black | 3500K | Dim-Multisensor | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 11000lm | 73W | |
| AS2AWR-840H-L600-SW-A | Caleo-S2 | L=600mm | Microprismatic screen | Snow White | 4000K | Swarm Control | Side Cut-Out base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 14500lm | 96W | |
| AS2ABR-840H-L600-SB-A | Caleo-S2 | L=600mm | Microprismatic screen | Jet Black | 4000K | Swarm Control | Side Cut-Out base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 14500lm | 96W | |
| AS2ABR-840H-L600-SG-A | Caleo-S2 | L=600mm | Microprismatic screen | Jet Black | 4000K | Swarm Control | Side Cut-Out base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 14500lm | 96W | |
| AS2AWM-840M-L600-SW-A | Caleo-S2 | L=600mm | Microprismatic screen | Snow White | 4000K | Dim-Multisensor | Side Cut-Out base | Reflector: Snow White | Schuko CEE 7/7 (E+F) | 11000lm | 73W | |
| AS2AWR-835H-L600-SG-A | Caleo-S2 | L=600mm | Microprismatic screen | Snow White | 3500K | Swarm Control | Side Cut-Out base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 14500lm | 96W | |
| AS2AWM-830M-L600-UG-A | Caleo-S2 | L=600mm | Microprismatic screen | Snow White | 3000K | Dim-Multisensor | U-base | Reflector: Satin Gold | Schuko CEE 7/7 (E+F) | 10285lm | 73W | |
| AS2ASM-830M-L600-US-A | Caleo-S2 | L=600mm | Microprismatic screen | Radiant Silver | 3000K | Dim-Multisensor | U-base | Reflector: Radiant Silver | Schuko CEE 7/7 (E+F) | 10285lm | 73W | |
| AS2ASM-840M-L600-PS-A | Caleo-S2 | L=600mm | Microprismatic screen | Radiant Silver | 4000K | Dim-Multisensor | Rectangular base | Reflector: Radiant Silver | Schuko CEE 7/7 (E+F) | 11000lm | 73W | |
| AS2ABM-840M-L600-PB-A | Caleo-S2 | L=600mm | Microprismatic screen | Jet Black | 4000K | Dim-Multisensor | Rectangular base | Reflector: Jet Black | Schuko CEE 7/7 (E+F) | 11000lm | 73W |
