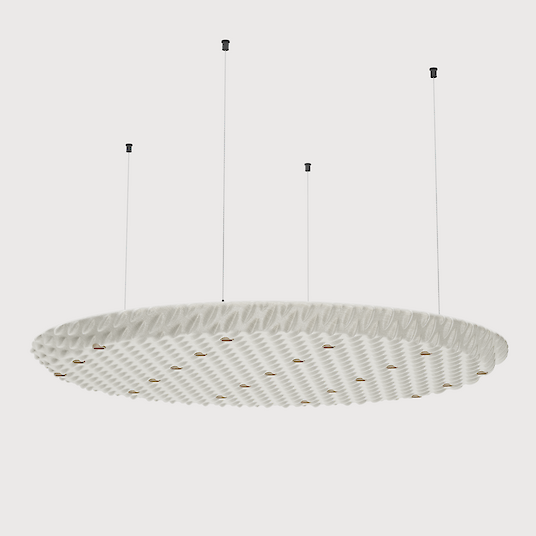

LED acoustic pendant luminaire

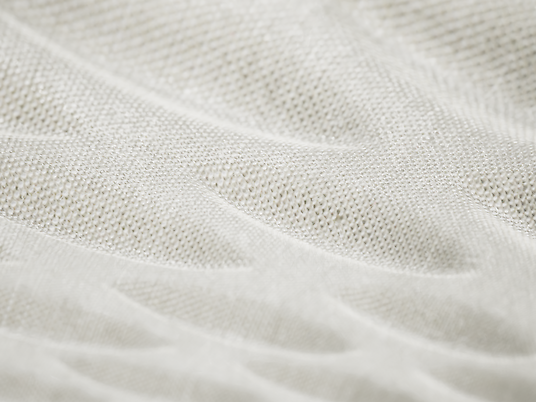

Direct-indirect or direct-only light distribution. Luminaire body made of aluminium. Sound absorber for a wide frequency spectrum, to reduce the reverberation time. 3D textile fabric made of Trevira CS available in cream, taupe, green and anthracite. Direct light with precision lenses for uniform symmetrical light distribution with high glare limitation (UGR<19) for workplaces. Driver integrated into luminaire housing, available as switched or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2700K, 3000K, 3500K, 4000K or 6500K. Binning ≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spec¬trum. Height-adjustable parallel cord suspension with transparent power supply cable. Ceiling rose to match luminaire body.
Product adjustments
Cream Fabric
Green Fabric
Taupe Fabric
Antracite Fabric
Configuration and data download
| Downloads | Article code | Productname | Length L/Diameter D (mm) | Optical system | Surface finish | Colour temperature | Control | Suspension | Luminous Flux | Power consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| FP1K4E-830H-D930-K | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Antracite Fabric | 3000K | Switchable | Parallel susp. (Set) | 10341lm | 93W | |
| FP1K4L-840H-D930-U | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Antracite Fabric | 4000K | Dimmable (DALI) | Central susp. (Set) | 11060lm | 93W | |
| FP1K3L-830M-D930-U | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Taupe Fabric | 3000K | Dimmable (DALI) | Central susp. (Set) | 7200lm | 62W | |
| FP1K4E-830H-D930-U | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Antracite Fabric | 3000K | Switchable | Central susp. (Set) | 10341lm | 93W | |
| FP1K4L-840H-D930-K | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Antracite Fabric | 4000K | Dimmable (DALI) | Parallel susp. (Set) | 11060lm | 93W | |
| FP1K1E-830E-D930-U | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Cream Fabric | 3000K | Switchable | Central susp. (Set) | 4769lm | 40W | |
| FP1K1E-830E-D930-K | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Cream Fabric | 3000K | Switchable | Parallel susp. (Set) | 4769lm | 40W | |
| FP1K3L-830M-D930-K | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Taupe Fabric | 3000K | Dimmable (DALI) | Parallel susp. (Set) | 7200lm | 62W | |
| FP1K4L-840E-D930-U | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Antracite Fabric | 4000K | Dimmable (DALI) | Central susp. (Set) | 5100lm | 40W | |
| FP1K4L-840M-D930-K | Serenity-P1 | D=930mm | Anti-Glare Lens 24° | Antracite Fabric | 4000K | Dimmable (DALI) | Parallel susp. (Set) | 7700lm | 62W |
